ELENCO PRODOTTI CATEGORIA

Centring

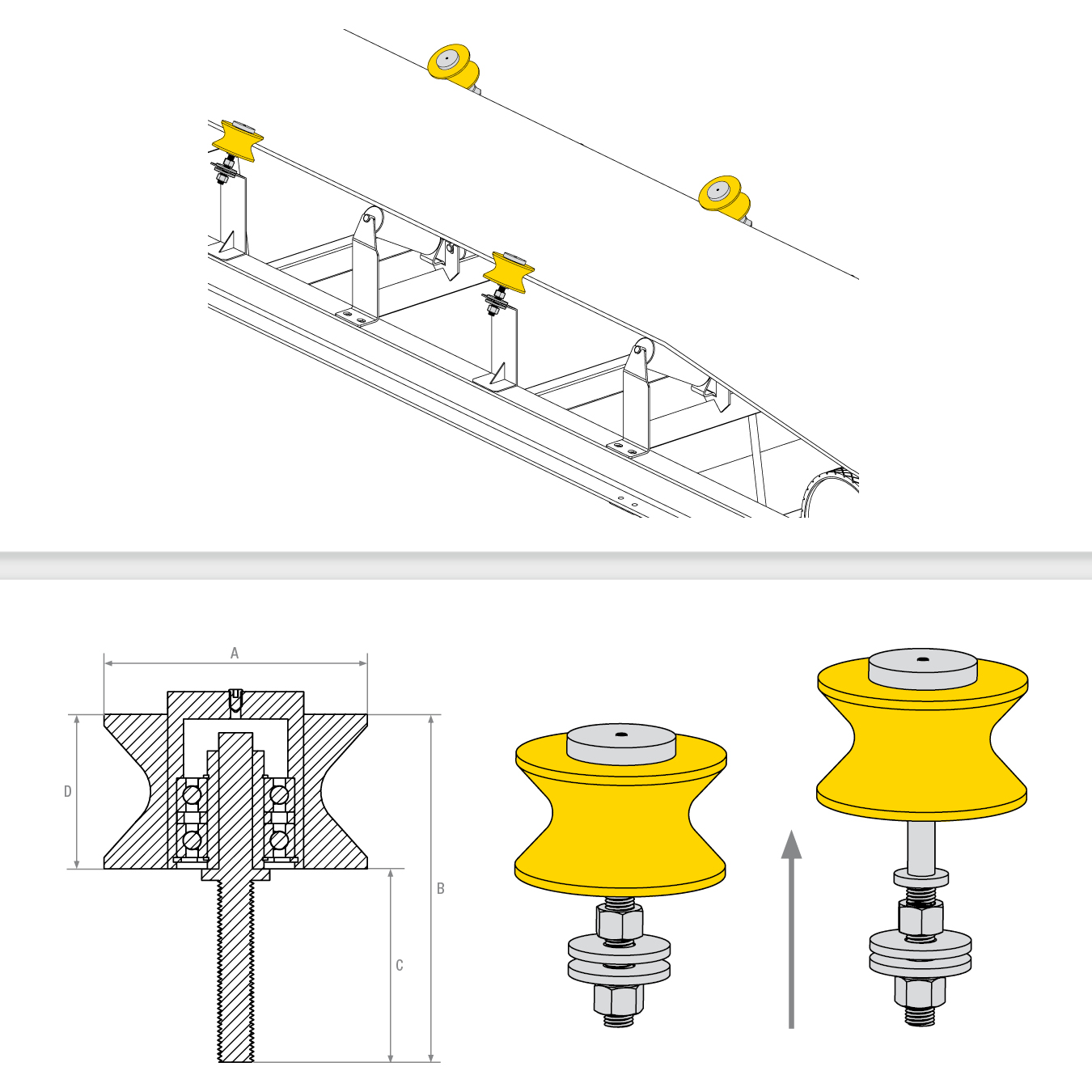

Rullo guida nastro
Cod. Articolo A B C D
mm mm mm mm
DRIVE ROLL SC
80 115÷132,4 55÷72,4 60
DRIVE ROLL BC
116 153÷174 85÷106 68

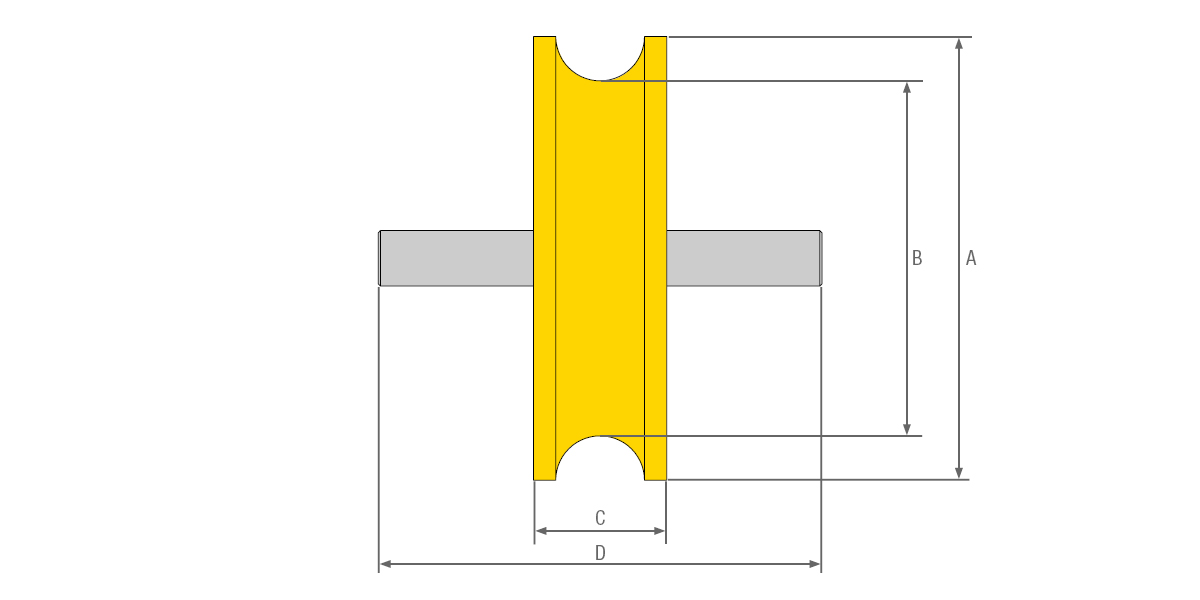

Rullo guida nastro W
Cod. Articolo A B C D
mm mm mm mm
DRIVE ROLL W
200 160 60 200
DRIVE ROLL W FLAME
200 160 60 200
DRIVE ROLL BW
300 220 80 260

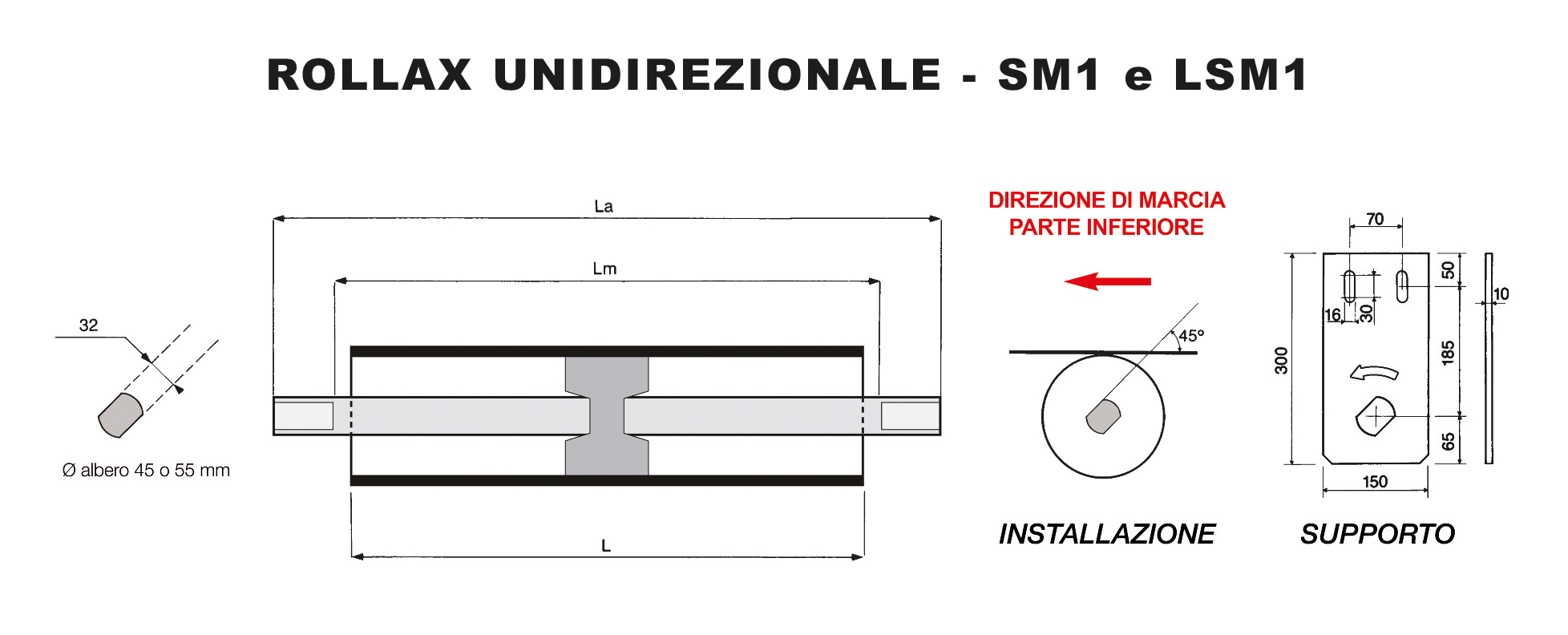

Rollax 1
Cod. Articolo belt width Ø ROLLAX only L Ø shaft La Lm weight
mm mm mm mm mm mm Kg
SM1 400
400 159 475 45 705 525 32
SM1 500
500 159 575 45 805 625 35
SM1 650
650 159 725 45 955 775 39
SM1 800
800 159 875 45 1105 925 44
SM1 1000
1000 159 1115 45 1345 1165 50
SM1 1200
1200 159 1315 45 1545 1365 56
LSM1 1200
1200 193 1315 55 1545 1365 84
LSM1 1400
1400 193 1515 55 1745 1565 93
LSM1 1600
1600 193 1715 55 1945 1765 102
LSM1 1800
1800 193 1915 55 2145 1965 111
LSM1 2000
2000 193 2115 55 2345 2165 120

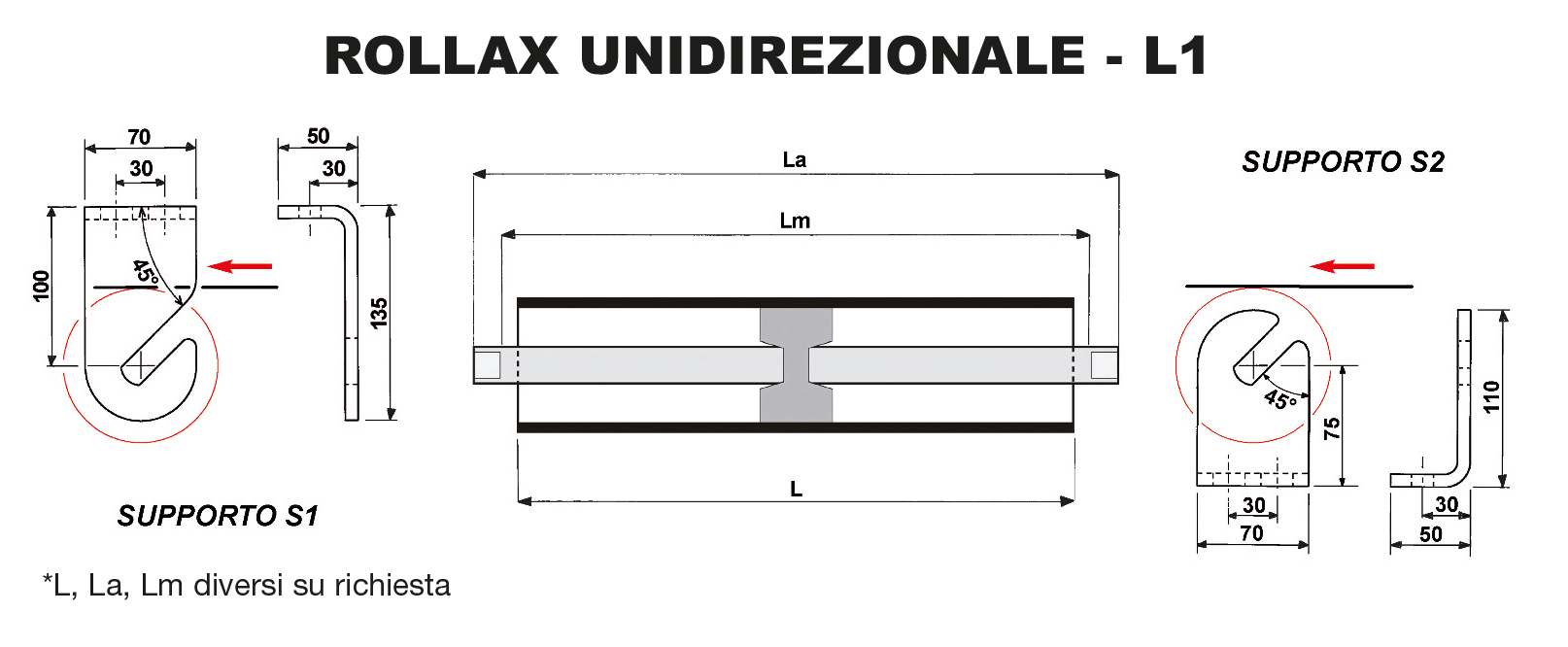

L1 650
650 89 725 25 790 758 8,7
L1 800
800 89 875 25 940 908 9,7
L1 1000
1000 89 1115 25 1180 1148 11,3

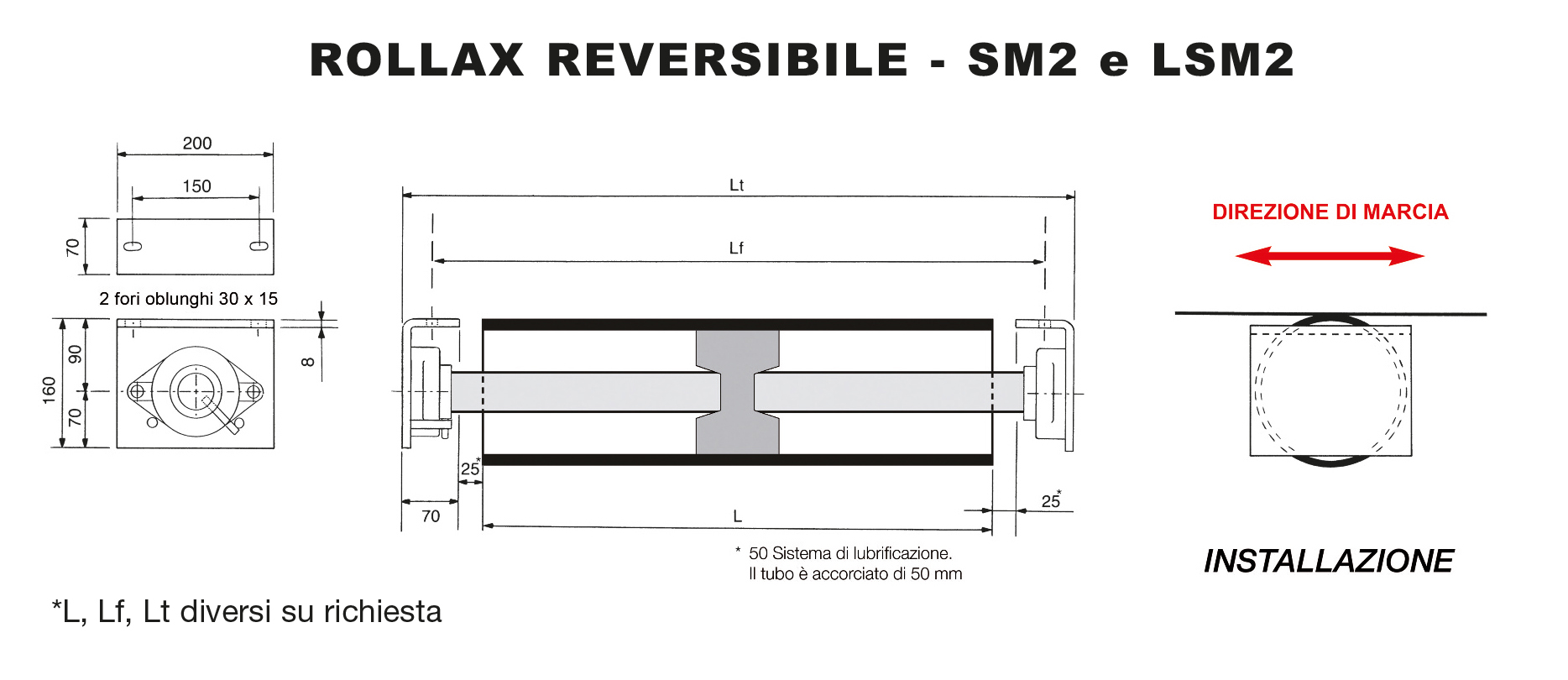

Rollax 2
Cod. Articolo belt width Ø ROLLAX only L Ø shaft La Lm weight
mm mm mm mm mm mm Kg
SM2 400
400 159 475 45 595 665 34
SM2 500
500 159 575 45 695 765 37
SM2 650
650 159 725 45 845 915 42
SM2 800
800 159 875 45 995 1065 46
SM2 1000
1000 159 1115 45 1235 1305 52
SM2 1200
1200 159 1315 45 1435 1505 58
LSM2 1200
1200 193 1285 55 1435 1505 86
LSM2 1400
1400 193 1485 55 1635 1705 95
LSM2 1600
1600 193 1685 55 1835 1905 104
LSM2 1800
1800 193 1885 55 2035 2105 113
LSM2 2000
2000 193 2085 55 2235 2305 122
Rollax 3
Cod. Articolo belt width Ø ROLLAX only L Ø shaft La Lm weight
mm mm mm mm mm mm Kg
L1 400
400 89 475 25 540 508 7,0
L1 500
500 89 575 25 640 608 7,7
L1 650
650 89 725 25 790 758 8,7
L1 800
800 89 875 25 940 908 9,7
L1 1000
1000 89 1115 25 1180 1148 11,3

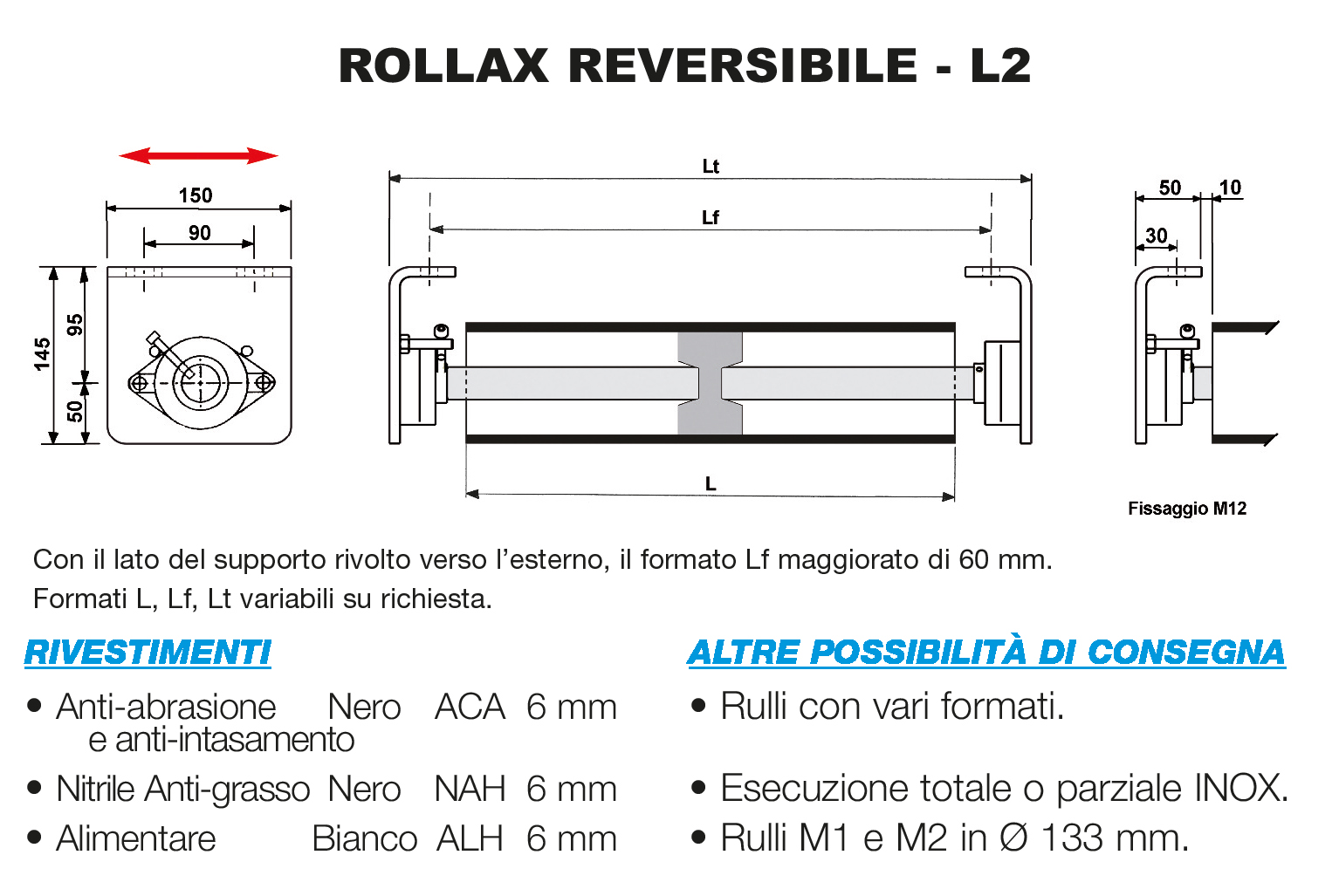

Rollax 4
Cod. Articolo belt width Ø ROLLAX only L Ø shaft Lf Lt weight
mm mm mm mm mm mm Kg
L2 300
300 89 350 25 410 470 9,1
L2 400
400 89 450 25 510 570 9,8
L2 500
500 89 550 25 610 670 10,5
L2 600
600 89 650 25 710 770 11,1
L2 650
650 89 700 25 760 820 11,5
L2 800
800 89 850 25 910 970 12,5
L2 1000
1000 89 1050 25 1100 1170 14,1
